Renaissance Mk V
Pre Amplifier

The Renaissance Mk V Preamplifier replaces the earlier Mk III, and is completely new in circuit, chassis materials, and appearance. In fact, it has more in common with the VAC Statement Series than the prior Renaissance generation.

Renaissance Mk V

  • The line stage circuit is the same transformer- coupled Class A1 balanced triode design found in the Statement Line Stage. The external power supply has dual-mono recti cation and ltering of the crucial high voltage supplies for superb, spacious imaging and great preservation of nuance. The remote volume control is of the direct-acting analogue type and continuously variable, so you easily can the precise level that makes the music snap into focus.

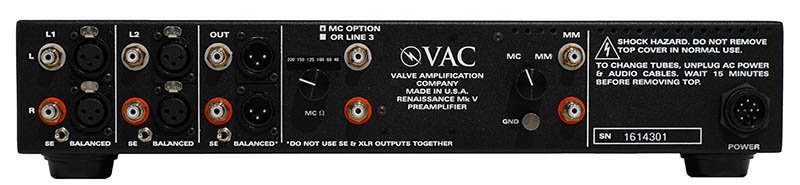

    The audio connectors are premium rhodium plated Cardas and Neutrik Professional. There are three high level inputs, two of which may be balanced or single-ended, just like the output.

    Vinyl lovers may specify the optional MM MC phono stage, which features three twin triodes operating in pure Class A1, variable MC impedance loading, and purely passive, precise RIAA equalization. The circuit topology is derived from the Signature Mk IIa SE, di ering principally in the number of tubes employed, and uses the same premium MC input transformers. The results rival and exceed those delivered by many more costly separate phono stages. You should expect nothing less of a VAC.


  • Gain

    10 dB

    Frequency Response

    Flat over audio band

    –3 dB bandwidth 5 Hz – 210 kHz

    Inputs

    2 sets balanced/RCA selectable inputs

    Optional  1 MM and 1 MC (or additional RCA line input if phono is not fitted)

    Outputs

    1 set RCA

    1 set balance XLR (EIA “pin 2 hot” studio standard)

    Tubes

      2x 7308, 6922, E88CC, ECC88, or 6DJ8 twin triodes

    Absolute Phase Correct from all inputs to all outputs

    THD

     <0.009% @ 1 kHz, 1 V RMS

    Maximum Output  8 V RMS
    Output Impedance > 150 ohms, 20 Hz - 20 kHz, static (i.e., not dependent upon feedback)
    Maximum Input   Infinite signal (attenuation precedes the gain circuitry)
    Recommended Output Load     > 300 ohms
    Power External power supply, detachable umbilical cable, detachable IEC power cord

    Voltage

    May be factory configured for operation at 100, 120, 220, or 230/240 volts

    Power Cord

    Detachable power cord, standard IEC power receptacle

    Remote Control

    included

    Illumination

    Illuminated logo may be switched to bright, dim, or off

    Finish

    Hand-rubbed gold-flake gloss black lacquer with chrome knobs standard.

    Hand-rubbed metallic gloss silver lacquer with chrome knobs special order with additional cost.

    Warranty

    Two years parts and labor, excluding tubes (USA, see manual for full details)

    Dimensions (H x W x D)

    Audio chassis (not including knobs and connectors): 4" x 18" x 16"


    Power supply (not including connectors): 4.3" x 6" x 13"

    Shipping Weight

    44 lbs.


    Optional Phono Stage Technical Specifications

    Tubes

    3x 12AX7

    Gain

    44 dB MM

    62 or 68 dB MC (switchable on units made after September 1, 2017)

    Frequency Response

    RIAA standard +/- 0.2 dB (20 Hz - 20 kHz)

    -3 dB bandwidth 10 Hz - • 80 kHz

    Channel Separation

    > 77 dB @ 1 kHz

    MC Load Impedance selectable, 470, 300, 250, 200, 150, and 100 ohms

    Overload

     117MV @ 1kHz = 8 volts RMS output; 460MV @ 10kHz

    Residual Noise Less than 3MV at output (s/n ratio greater than approx. 69db)

    *Specifications subject to change without notice.
