Statement Phono
Preamplifier

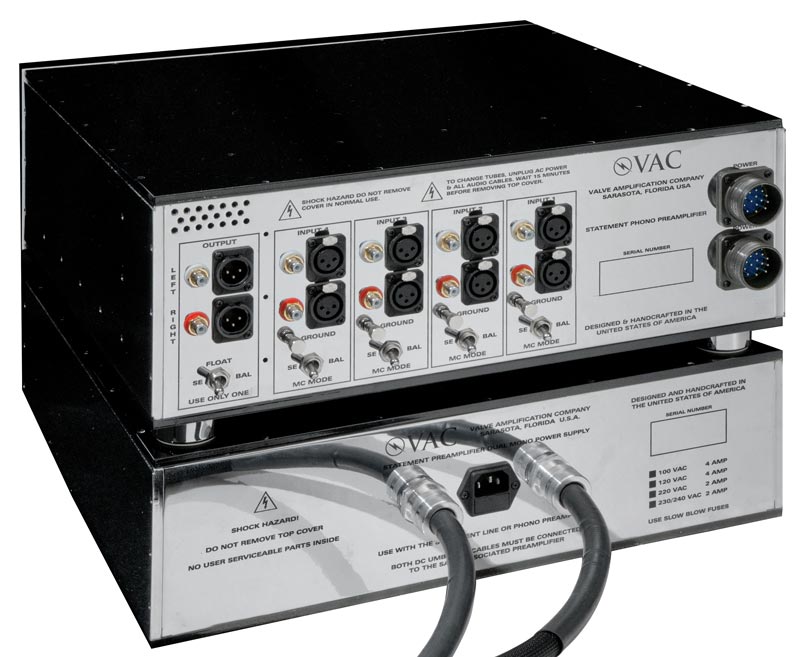

This VAC Statement dual mono triode vacuum tube phono (MM/MC, three gain modes, adjustable load, stereo/mono operation) preamplifier is designed for extreme applications. On the back panel there are two DC umbilical cords and large Amphenol aerospace connectors, a reminder of the massive dual mono power supply. There are inputs for four independent phone sources. In addition, each input may be of the conventional single-ended type or may be fully balanced.

Product Brochure
Statement Phono
  • Mechanical Design
    The chassis is machined at VAC from high-grade, non-ferrous aluminum and processed through a series of plating steps. The resulting AICuNiCr chassis possesses superior RF rejection properties across a wide range of radio frequencies. Similar care is taken around each of the six wideband audio transformers in each unit.

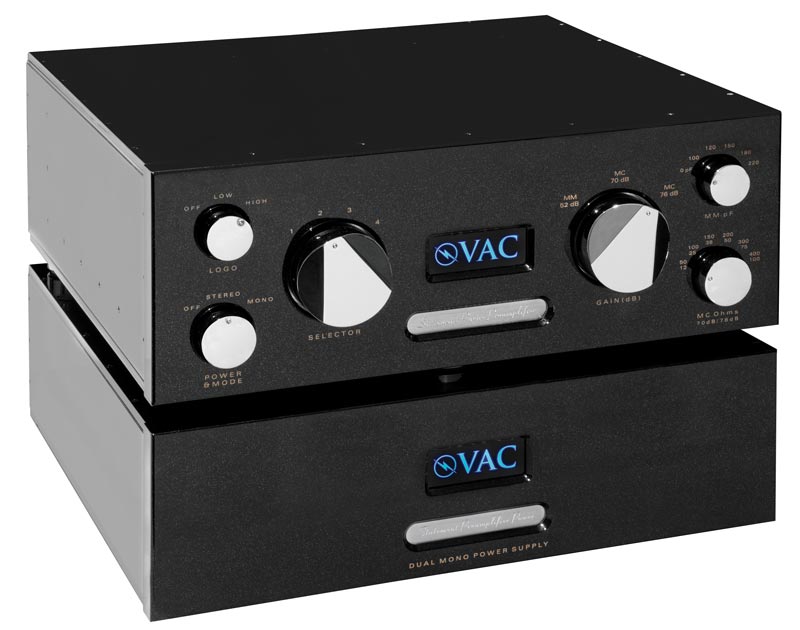

    The front panel features a large machined knob for the four-position selector switch. Another large knob selects overall gains of 52 dB, 70 dB, or 76 dB to match virtually all moving magnet and moving coil cartridges. Smaller knobs provide full control of load impedance, load capacitance, and stereo or mono operation.

    Electrical Design

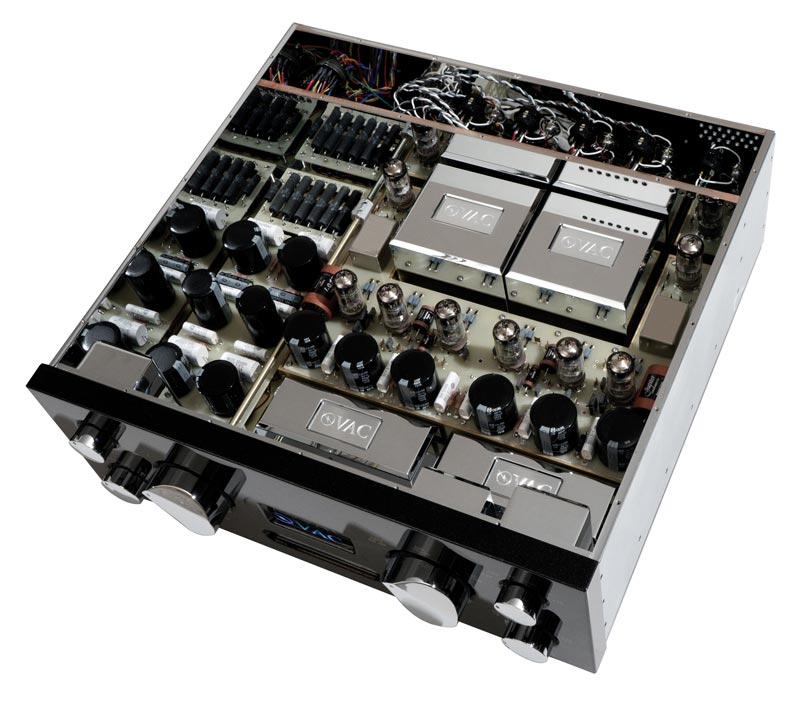

    The audio chassis’ distinct isolated sections dedicated to certain signal functions prevent unwanted interactions among the circuits. Interconnecting wires are carefully routed and directed by spaced machined nonmetallic guides. The hand-wired vacuum tube audio circuit assemblies are bonded to massive brass loading plates, which in turn are isolation mounted to the main chassis. The eight twin triode vacuum tubes employed in the various Class A 1audio stages are made with the finest grade parts, such as ‘naked’ metal foil resistors. The RIAA equalization is achieved without negative feedback, preserving the organic nature of the sound. A wide range of magnetic core materials and magnet wires were tested and auditioned, including different winding structures, silver and copper magnet wires, and mu metal and amorphous cobalt cores, to determine the ideal combination for the world’s finest phono stage.

    Power Supply
    The massive separate power supply is a dual mono design with substantial energy storage and high inherent regulation. Both resistive and inductive elements are used in concert with high-speed capacitor assemblies for the high voltage supplies, while active voltage stabilization is included in the four heater supplies and the 12-volt trigger supply.


  • Tubes

    6x 12AX7

    2 x E88CC/6922, ECC88/6DJ8, or 7308

    Gain

    352 dB MM (low gain)

    70 dB MC (medium gain)

    76 dB MC (high gain)

    Up to 6 dB greater gain available on special order

    Frequency Response

    RIAA standard +/- 0.2 dB (20 Hz - 20 kHz)

    -3 dB bandwidth 10 Hz - 80 kHz

    Channel Separation

    > 84 dB @ 1 kHz

    Maximum Input

    > 130 mV @ 1 kHz, MM (low gain); >500 mV @ 10 kHz

    > 16 mV @ 1 kHz, MC (medium gain)/p>

    > 8 mV @ 1 kHz, MC (high gain)/p>

    Load Impedance

    MM, 47k Ohms

    MC (medium gain), selectable 400, 300, 200, 150, 100, or 50 Ohms

    MC (high gain), selectable 100, 75, 50, 38, 25, or 13 Ohms

    Load Capacitance

    MM, 1, 100, 120, 150, 180, or 220 pF

    Residual Noise

    Less than 3MV at output (s/n ratio > 74 dB)

    Absolute Phase

    Does not invert absolute phase

    Maximum Output

    > 8 V RMS

    Output Impedance

    < 150 ohms, 20 Hz - 20 kHz, static (i.e., not dependent upon feedback)

    Recommended Output Load

    > 300 ohms

    Power

    External power supply, dual detachable umbilical cable (dual mono design), detachable IEC power cord

    Voltage

    May be ordered for 100v, 120v, 220v, or 230/240v operation

    Illumination

    Illuminated logo may be switched to bright, dim, of off.

    Finish

    Hand-rubbed gold-flake gloss black lacquer with chrome knobs standard.

    Hand-rubbed metallic gloss silver lacquer with chrome knobs special order with additional cost.

    Warranty

    Two years parts and labor, excluding tubes (USA, see manual for full details)

    Dimensions (H x W x D)

    Audio chassis (not including knobs and connectors): 7 x 17.7 x 16.15 in.

    Power supply (not including connectors): 5.8 x 17.7 x 16.15 in.

    Shipping Weight

    Phono stage chassis 56 lbs.

    Power supply 64 lbs

    *Specifications subject to change without notice.
