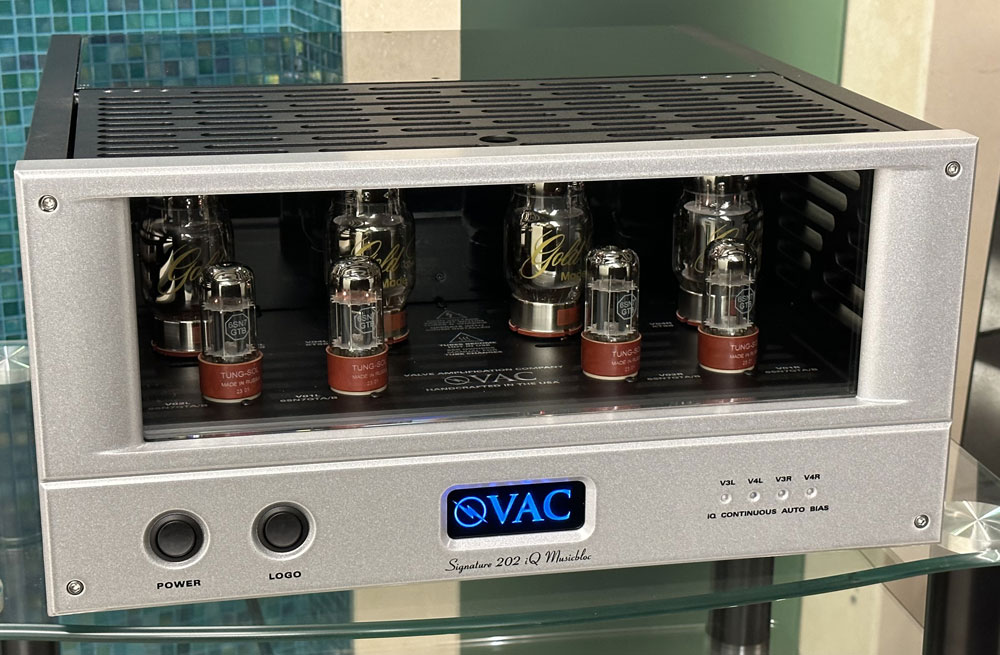

The all new VAC Signature 202 iQ Musicbloc™ builds on the foundation of the Statement 452 and Master 300, incorporating the same circuits, technologies, techniques, and materials to create a quality of sound never before heard in this category.
The Signature 202 iQ features VAC’s patented iQ Continuous Automatic Bias System and direct coupled Class A1 triode input and driver stages. The low feedback designs delivers 100 watts per channel in stereo mode and 200 watts in mono mode through its 14 pound 21 section bifilar output transformers. The inputs can be configured for fully balanced or single-ended operation.
The quartet of Gold Lion KT88 output tubes and TungSol 6SN7GTB input and driver tubes are accessed with the integral hinged cover.
All VAC instruments are meticulously handcrafted in the United States for heirloom quality. Ask your dealer for an audition today.
The VAC iQ circuit protected by US Patent 8,749,310
-
POWER OUTPUT
100 watts/channel stereo continuous
200 watts mono continuous
FREQUENCY RESPONSE
4 Hz to 72 kHz, +0/-0.25 dB
FULL POWER BANDWIDTH
13 Hz to 70 kHz, +0/-3 dB
RESIDUAL NOISE
Typically > 95 dB below rated output
GAIN
26 dB, all modes
OUTPUT POLARITY
Non-inverting (XLR pin 2 positive)
TUBE COMPLEMENT
4 x type 6SN7
4 x type KT88
CONNECTORS
Cardas rhodium RCA jacks, Neutrik XLR jacks
Cardas rhodium binding posts
DIMENSIONS
18" W x 17.75" D x 8.75" H (457 mm x 451 mm x 222 mm)
Excluding connectorsWEIGHT
100 lbs. (45.5 kg)
OTHER
12 volt trigger
Detachable power cord, IEC power receptacle
5x20 mm slow blow fuse
*Specifications subject to change without notice.
